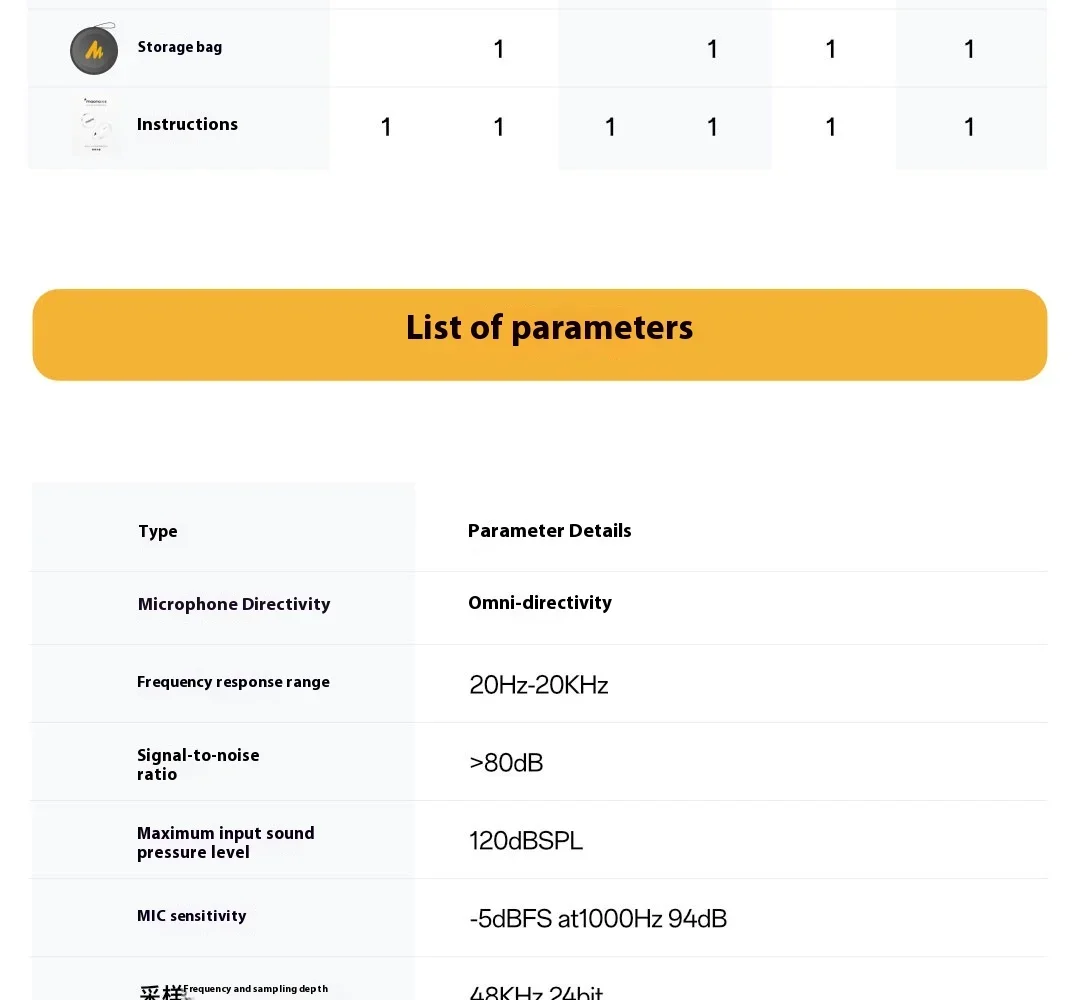

Microphone directivity: Omnidirectional
Frequency response range: 20Hz-20KHz

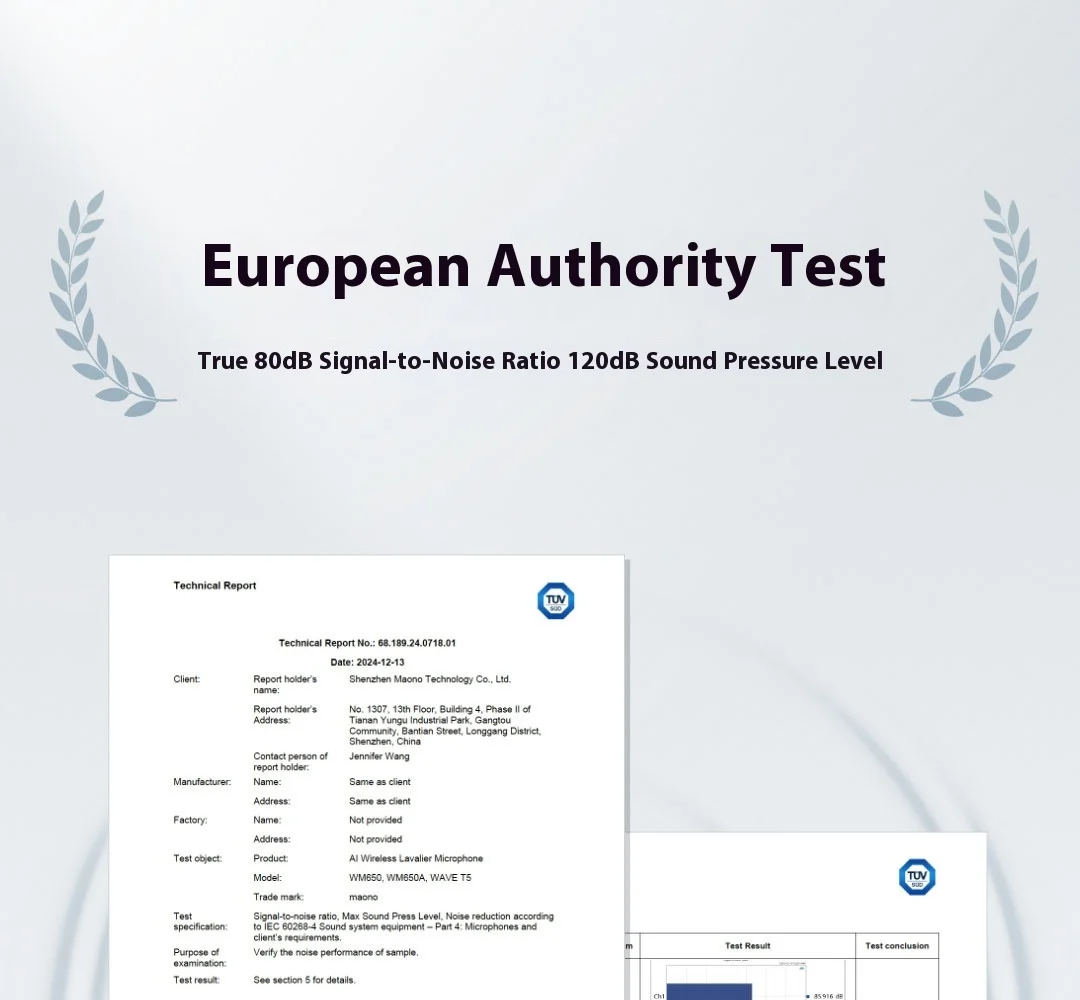

Signal to Noise Ratio:> 80dB

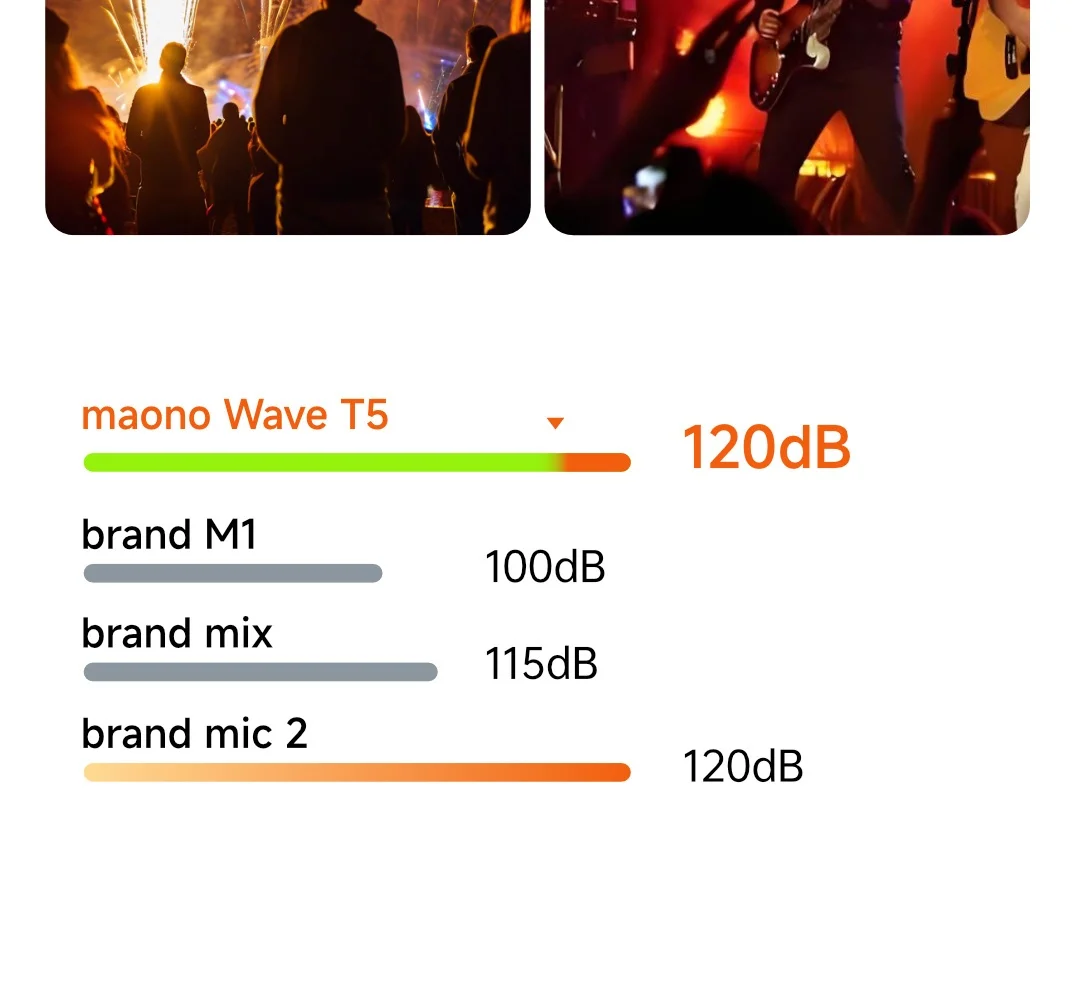

Maximum input sound pressure level: 120dBSPL
MIC sensitivity:- 5dBFS at1000Hz94dB
Sampling frequency and depth: 48KHz 24 bit

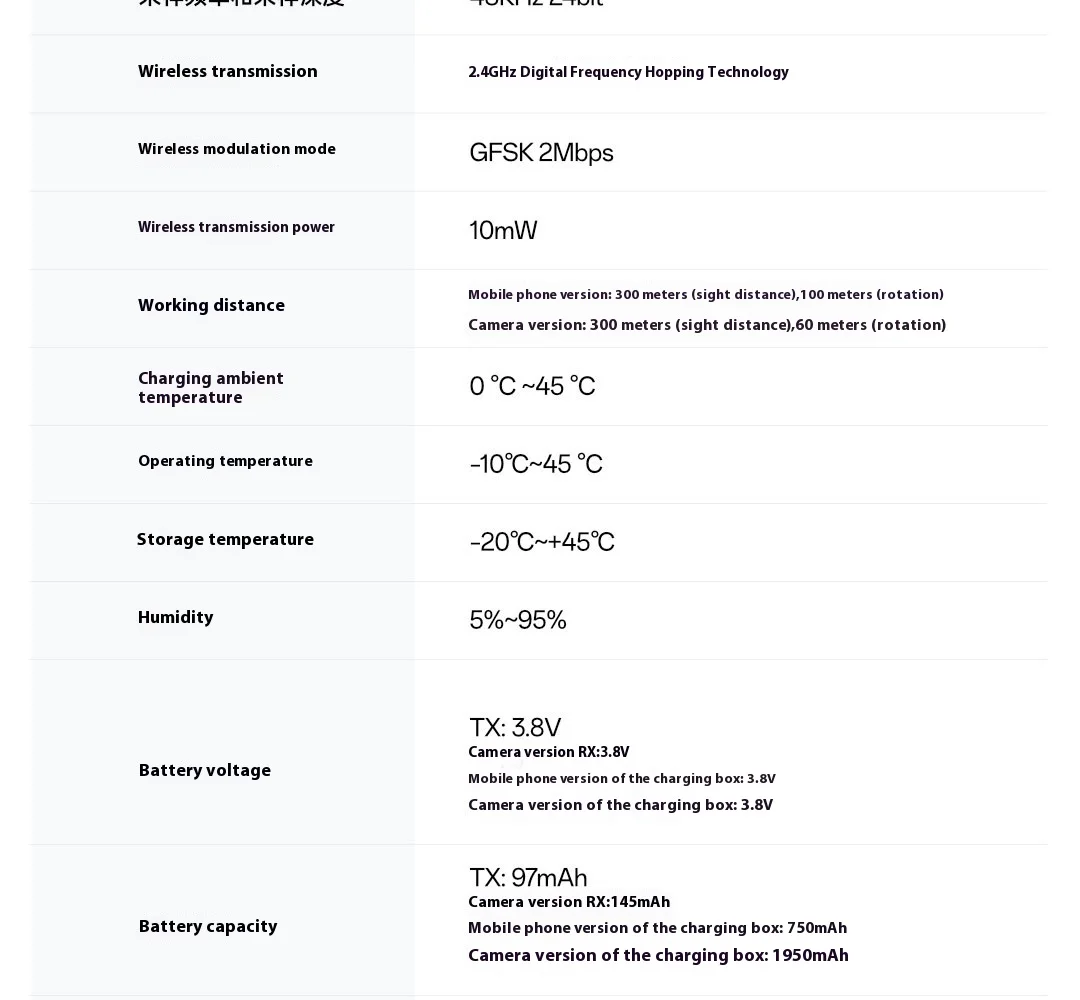

Wireless transmission: 2.4GHz digital frequency hopping technology
Wireless modulation mode: GFSK2Mbps
Wireless transmission power: 10mW

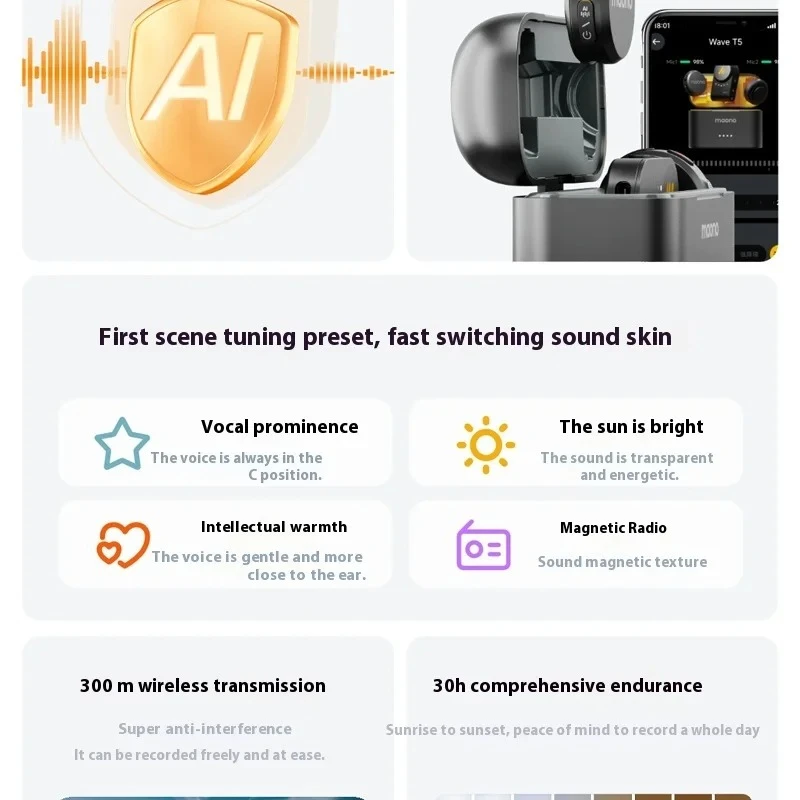

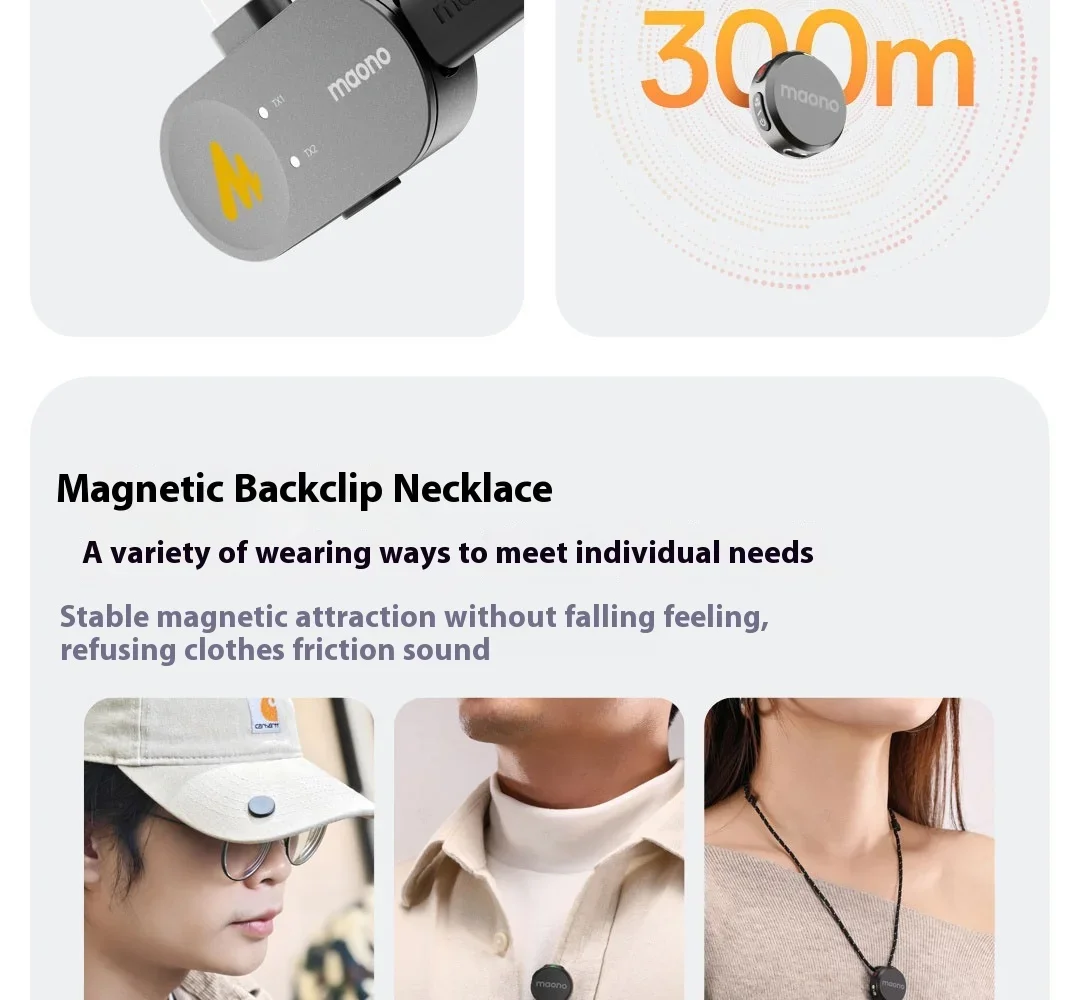

Working distance: Mobile version: 300 meters (line of sight) 100 meters (rotation)
Camera version: 300 meters (line of sight), 60 meters (rotation)
Charging environment temperature: 0 ° C~45 ° C
Working temperature:- 10℃~45°C
Storage temperature:- 20℃℃~+45℃℃
Humidity: 5%~95%
Battery voltage: TX: 3.8V
Camera version RX: 3.8V
Mobile version charging case: 3.8V
Camera version charging case: 38V
Battery capacity: TX: 97mAh
Camera version RX: 145mAh
Mobile version charging case: 750mAh
Camera version charging case: 1950mAh

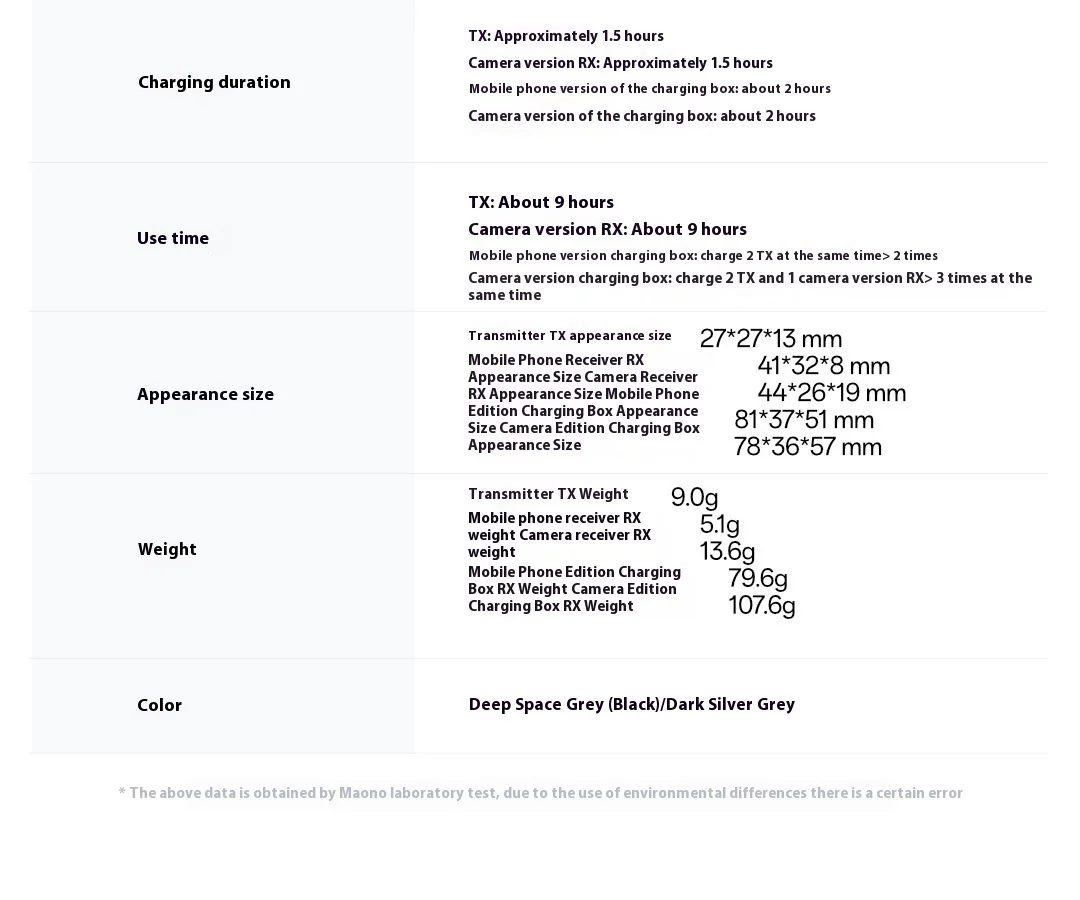

Charging duration: TX: About 1.5 hours
Camera version RX: approximately 1.5 hours
Mobile version charging case: about 2 hours
Camera version charging case: about 2 hours
Usage duration: TX: About 9 hours
Camera version RX: approximately 9 hours
Mobile version charging case: simultaneously charge 2 TXs>2 times
Camera version charging case: simultaneously charge 2 TX and 1 camera version RX more than 3 times
Appearance size: transmitter TX appearance size 27 * 27 * 13 mm
Mobile receiver RX appearance size 41 * 32 * 8 mm
Camera receiver RX appearance size 44 * 26 * 19 mm 81 * 37 * 51 mm
Appearance and dimensions of the mobile version charging case
The appearance size of the camera version charging case is 78 * 36 * 57 mm
Weight: TX transmitter weighs 9.0g
Mobile receiver RX weighs 5.1g
Camera receiver RX weighs 13.6g
Mobile charging case RX weighs 79.6g
Camera version charging case RX weighs 107.6g
Color: Dark Space Grey (Black)/Dark Silver Grey

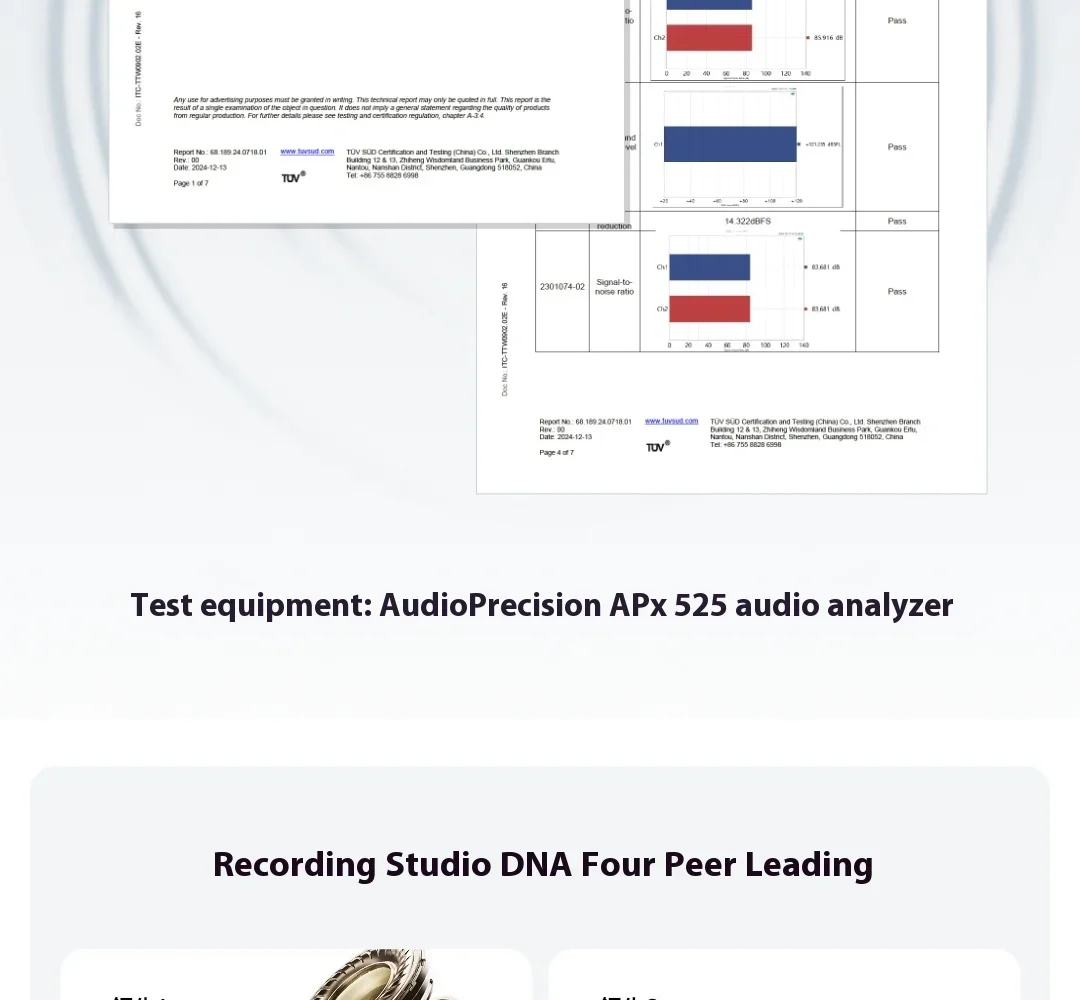

*The above data was obtained from Maono laboratory testing, and there may be some errors due to differences in usage environments
